Design

Hydraulic Manifolds

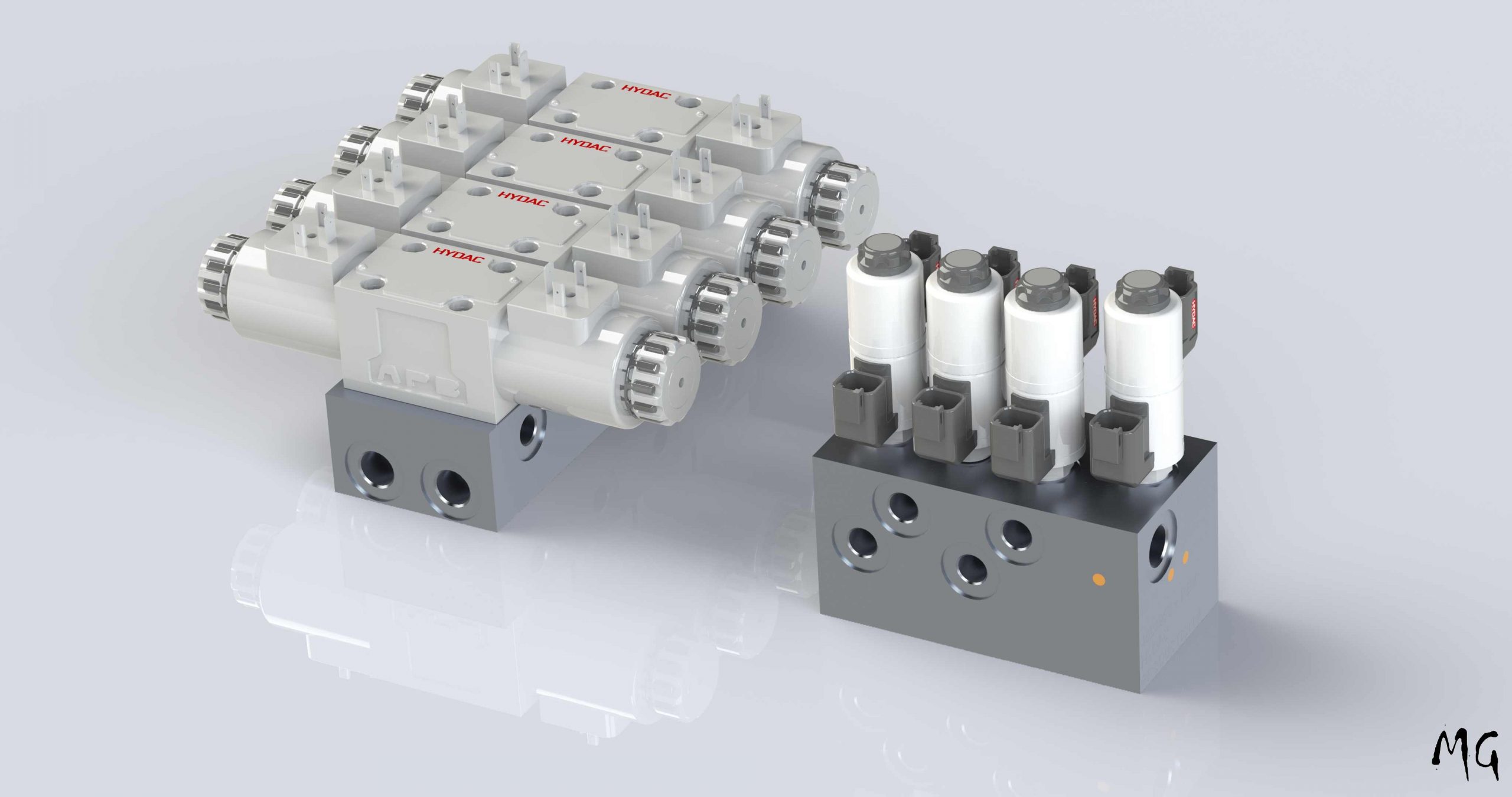

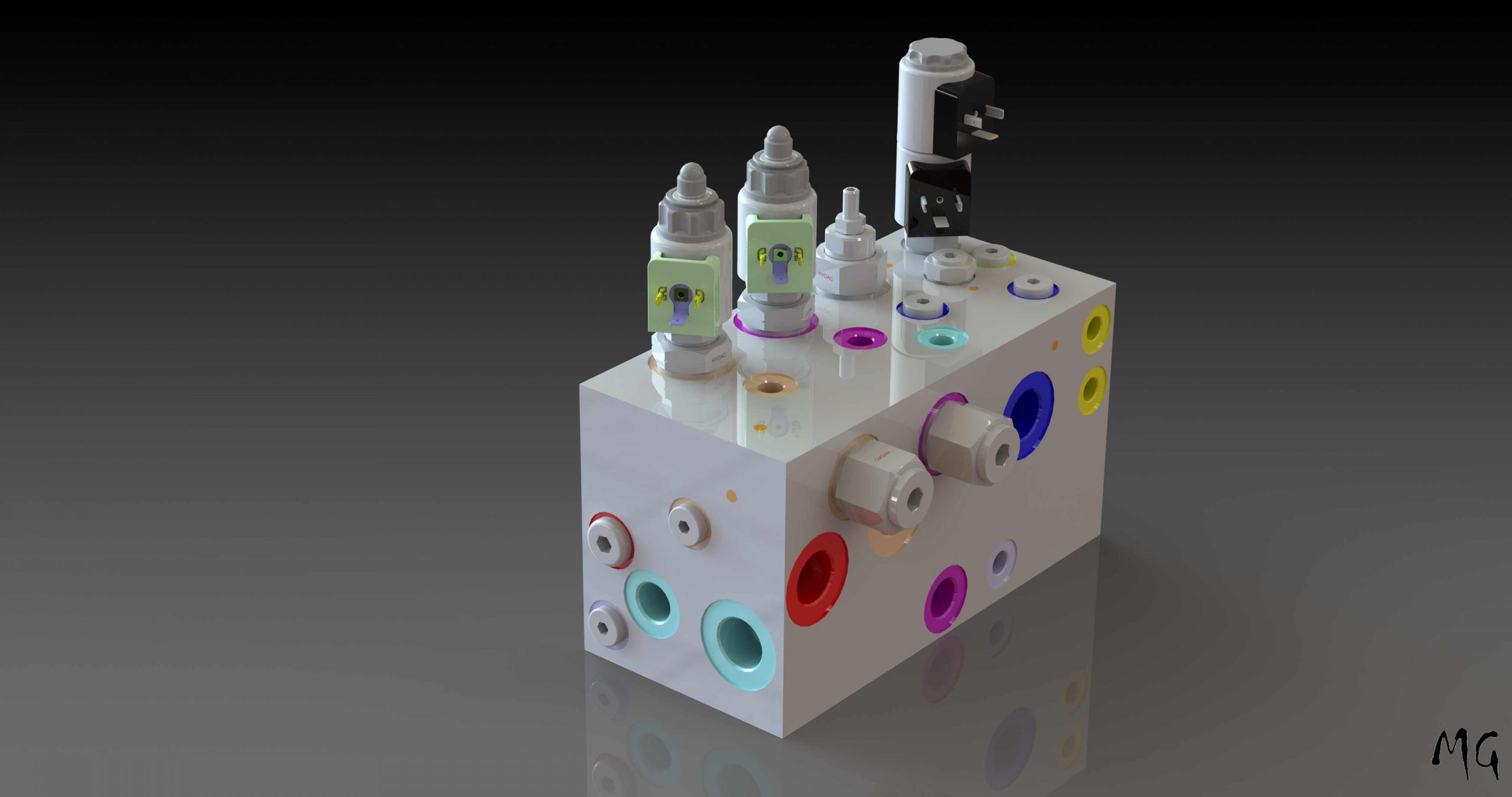

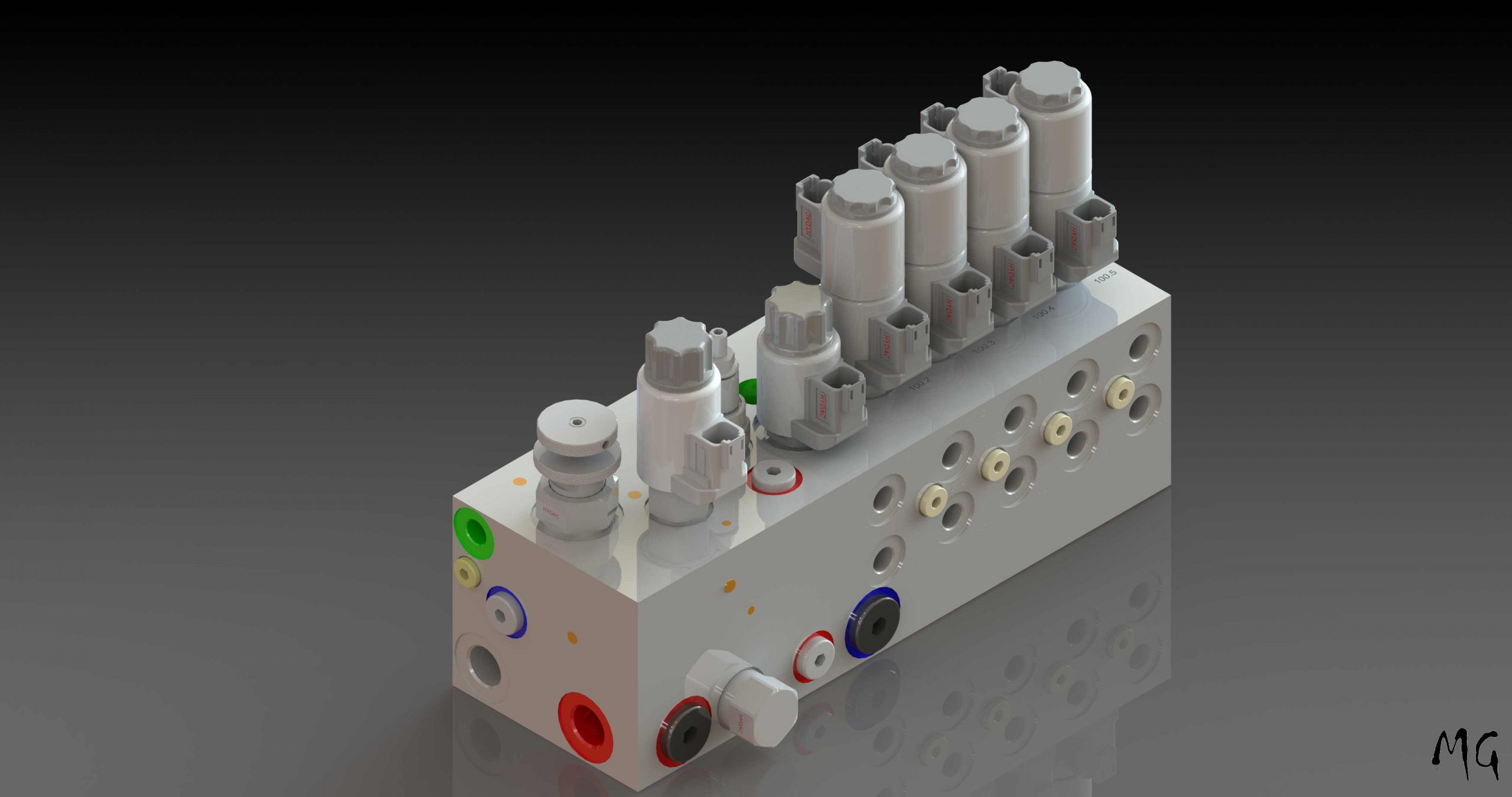

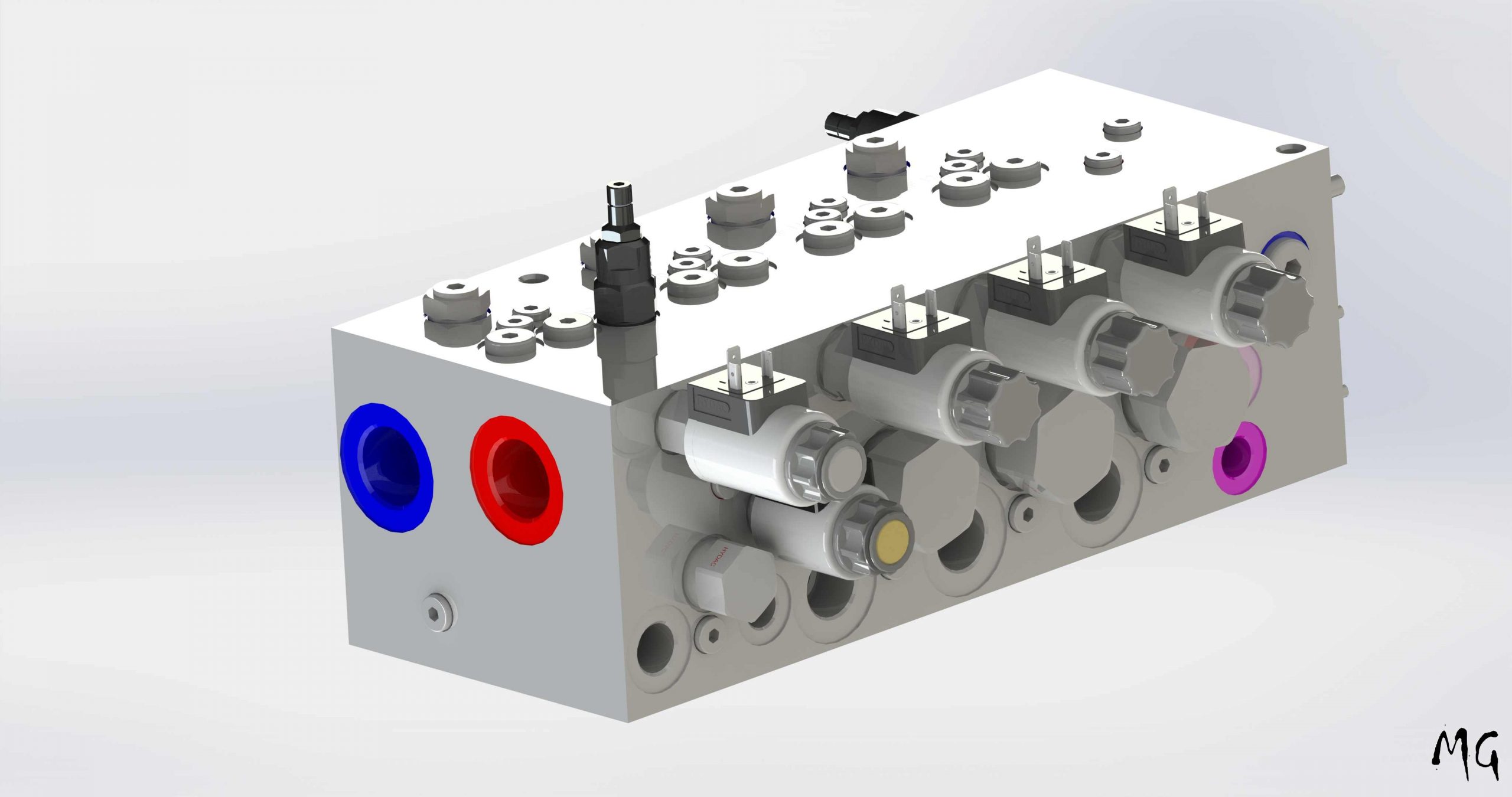

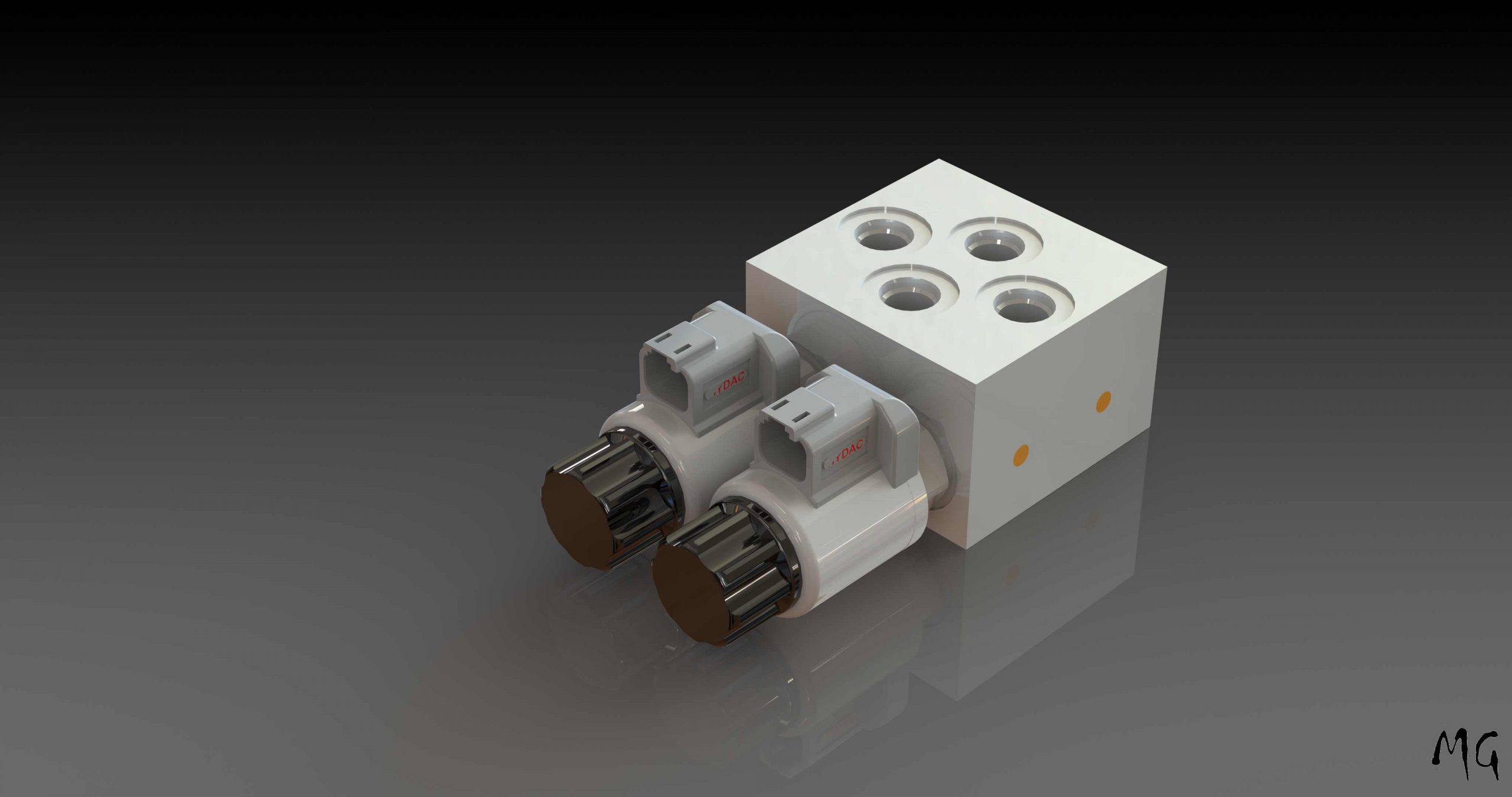

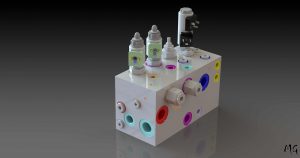

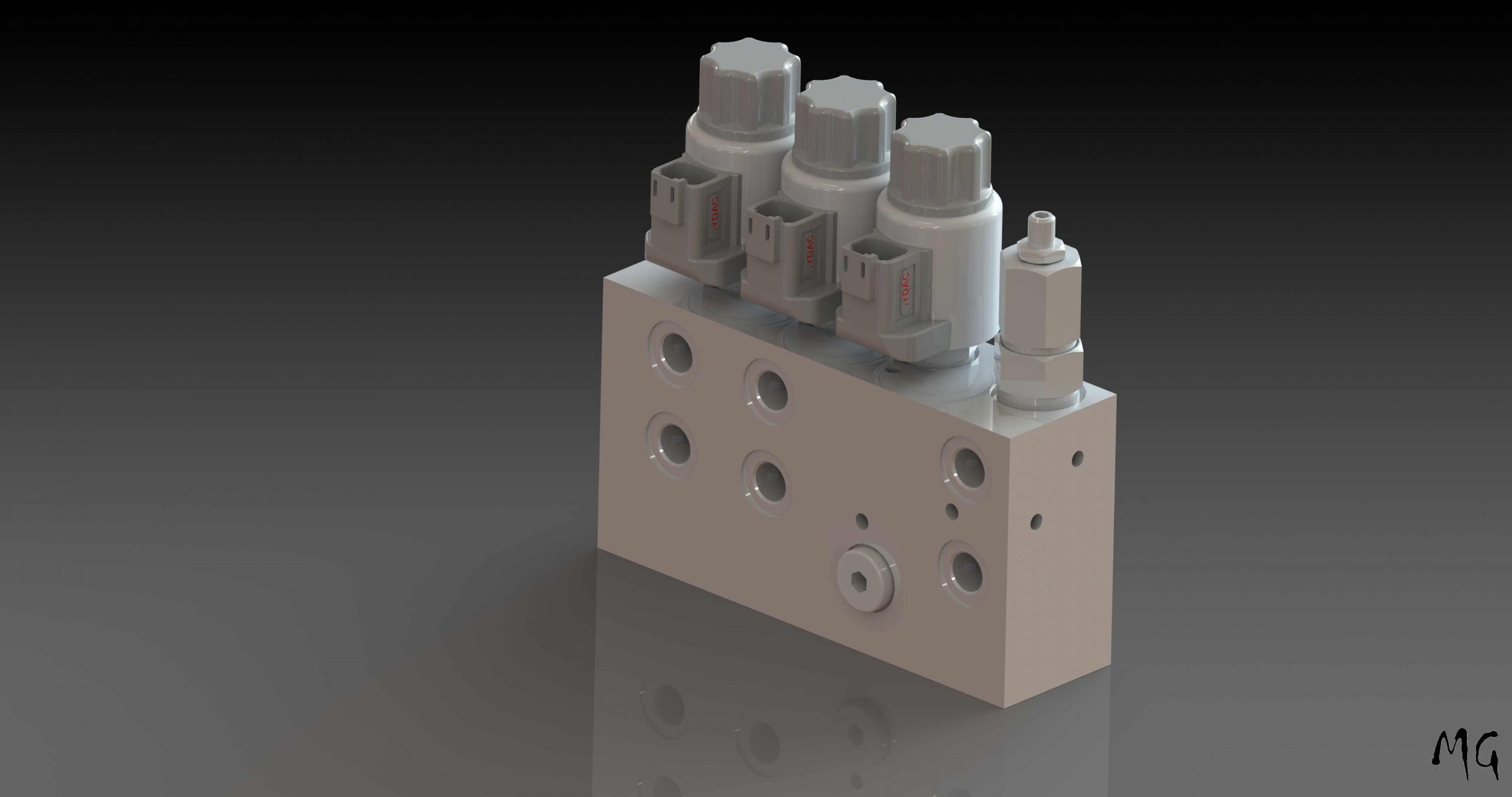

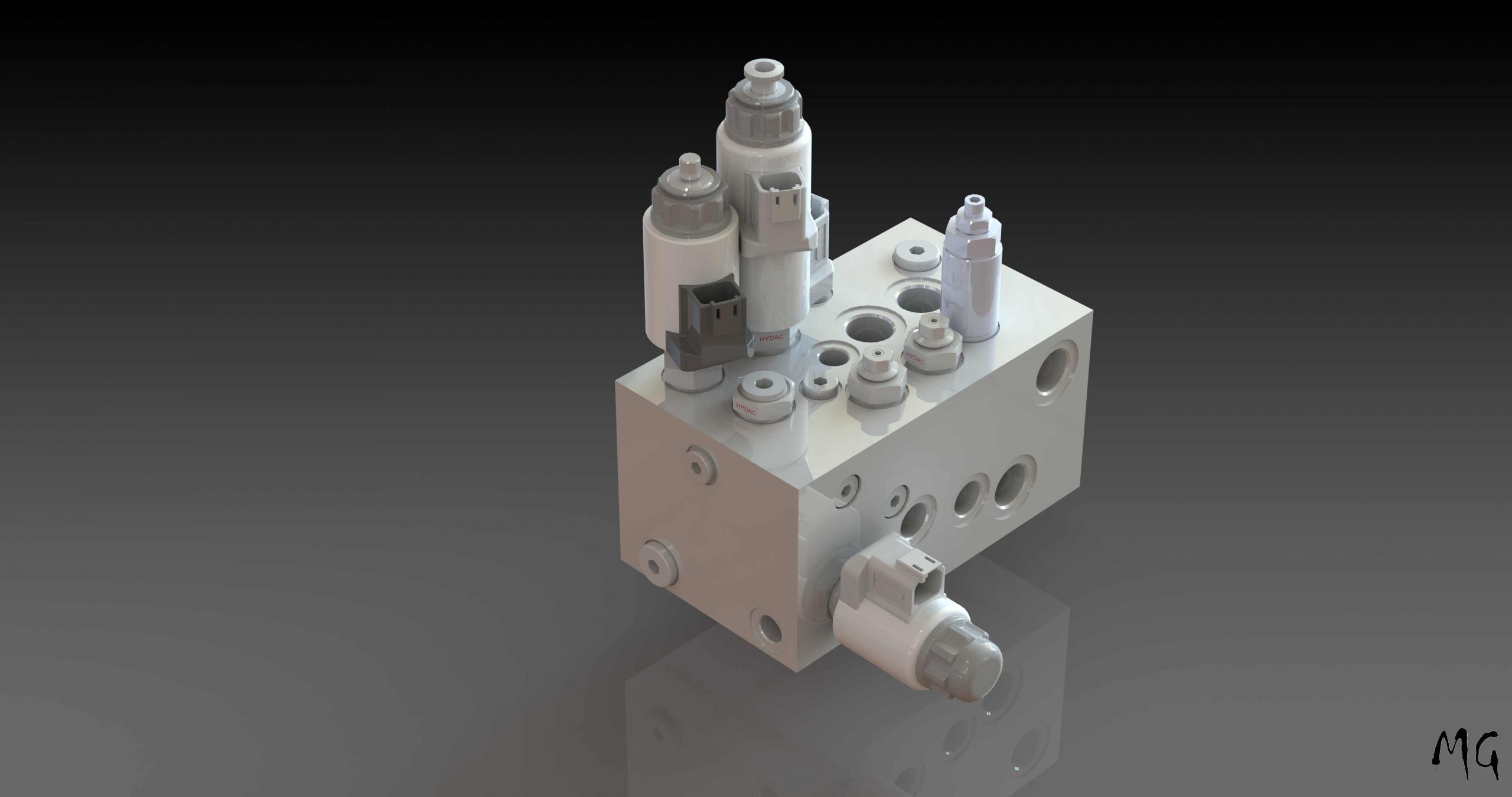

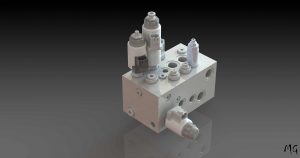

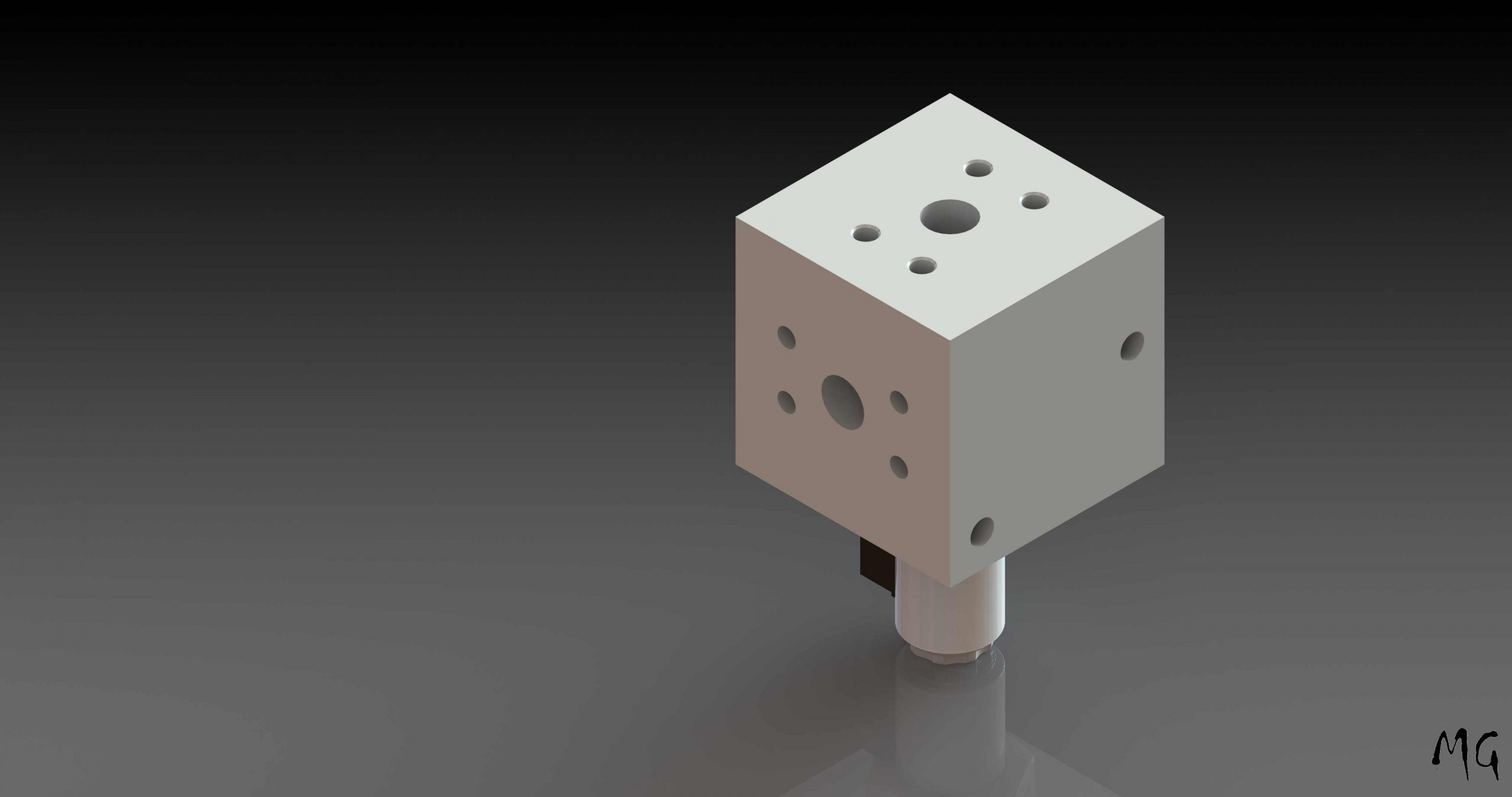

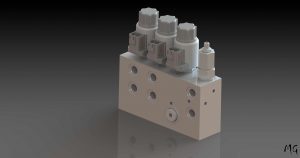

Below are some examples of hydraulic manifolds i have designed using Solidworks. Using supplied schematics designs were created to suit customer needs, used on various different applications, including industrial, mobile and agricultural machinery.

These manifolds use  a range of different valves, different manifold materials and port sizes and types.  The usual aim is to make the manifold as compact as possible to save cost and weight, but the design can be suite the customers need.

Advertising

Below are links to 2 examples of work I created, that were used in advertising what the company capabilities are.

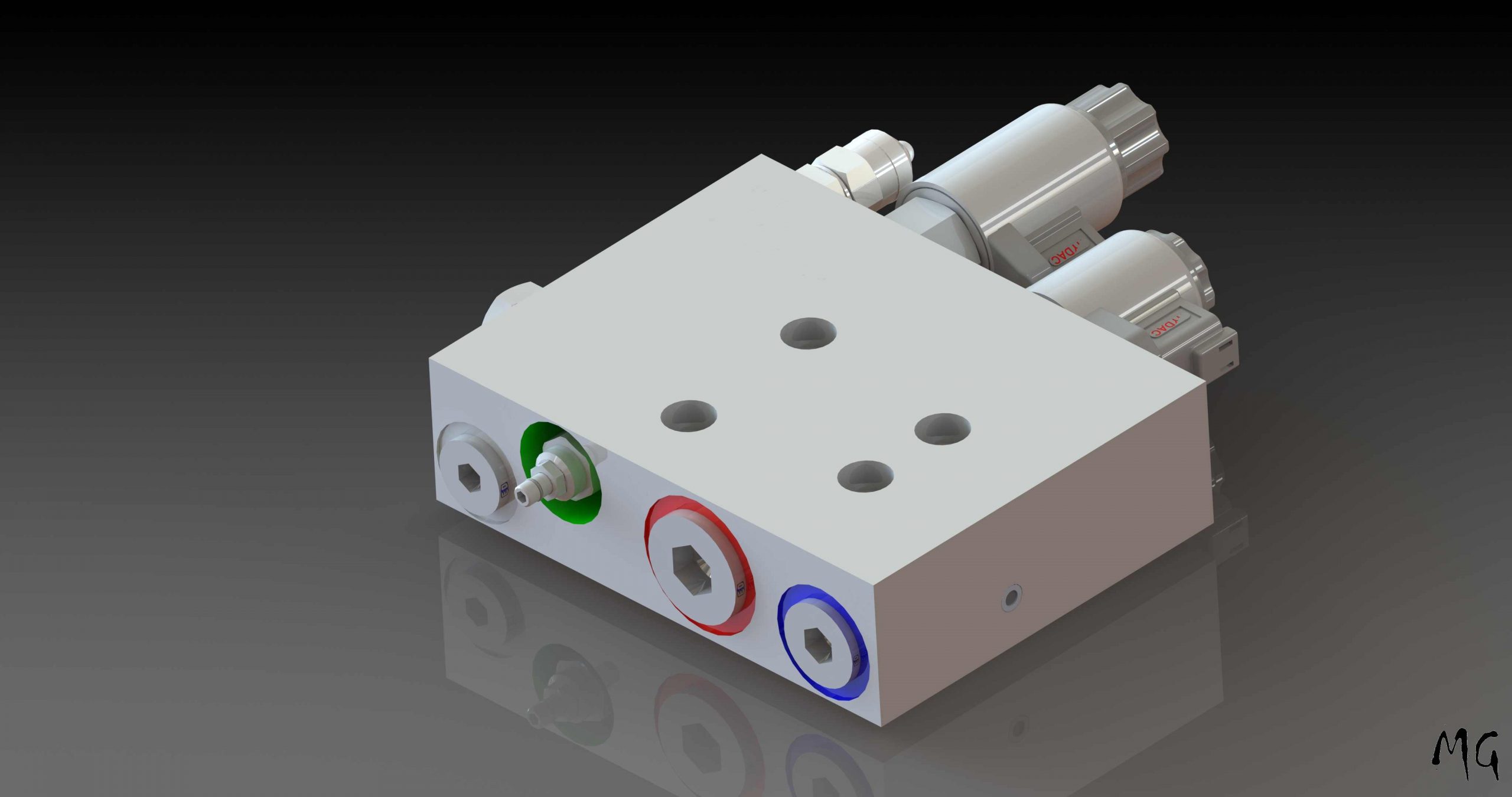

  • Manifold was design by me in Solidworks, rendering in this case was created by a colleague
  • Animation and rendering created in Solidworks by myself.

Safety Screen

Using Solidworks, I was tasked to design a safety screen that would fit within the envelope of the test bench.

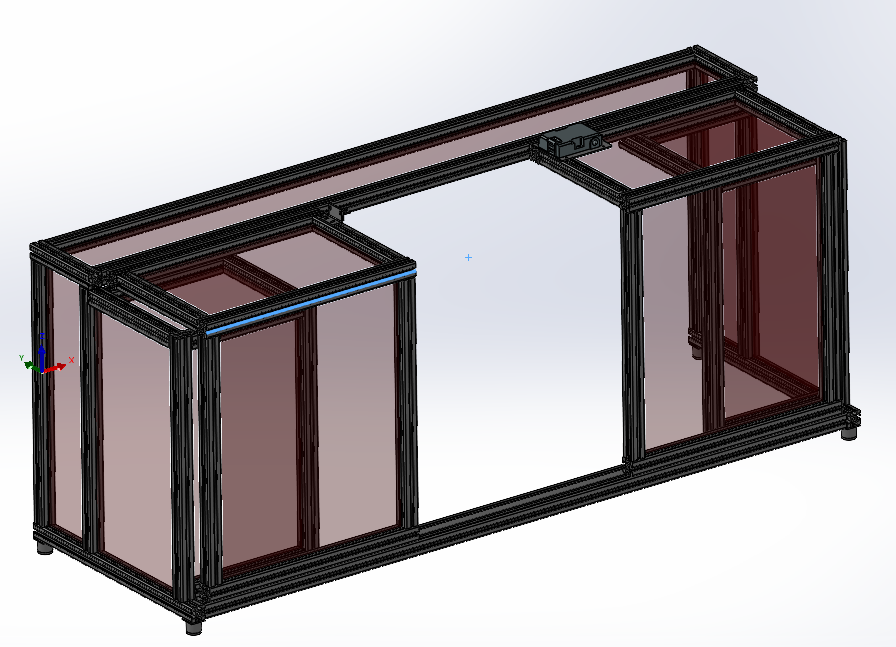

I was told it would need a top opening to allow the crane to access the test bench and it could not have doors that open outwards due to space constraints.

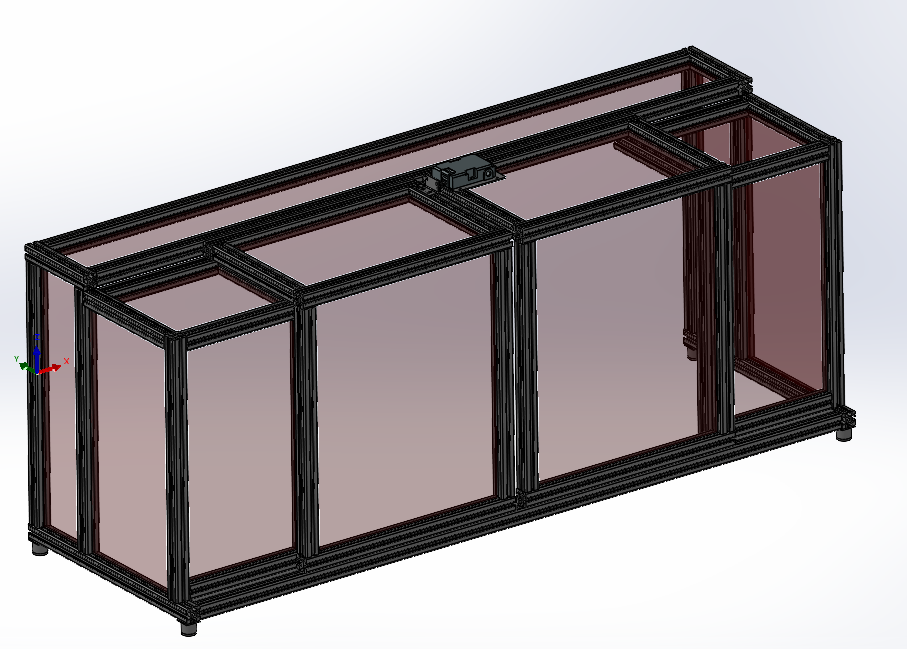

Using aluminum extruded profile, i designed and built the below safety screen.
